Features
- Compact Storage Systems - Our shelters are compact and easy to transport.
- Our shelters are interconnectable to form large deployment areas.
- Our shelters can be deployed quickly without assembly.
- Our shelters are capable of sustaining strong winds / gusts.
- Our shelters are fully operational in different temperatures.
- Our composite tubes have three times the flex strength of aluminium.
- 8 to 10 persons to deploy
- Can interconnect with other A series models
Specification
Product Information
| Item code | Model 6A |
| Usable Area: | 413.4 Sq.Ft |
| Weight (Insulation liner): | 20 ~ 21 Kg |
| Weight (Groundsheet): | 21 ~ 22 Kg |
| Total Weight: | 330 ~ 340 Kg (Include of groundsheet and accessories) |
| Shape: | Dome shaped |
Dimensions
| Length – Interior: | 33.6 Ft |
| Length – Exterior: | 35.3 Ft |
| Width – Interior: | 13.6 Ft |
| Width – Exterior: | 15.3 Ft |
| Height – Interior: | 8.1 Ft |
| Height – Exterior: | 10.6 Ft |
Materials
| Composite tube: | OD 15.6mm x ID 12mm, thickness 1.8mm |
| Outer fabric: | 1000D 20*20 400gsm (Blue/Green/Orange) PVC coated fabric, thickness: 0.33mm ~ 0.35mm |
| Inner fabric: | 250D 49*44 280gsm white PVC tarpaulin, thickness: 0.21mm ~ 0.23mm |
*Specifications are subject to change without prior notice.

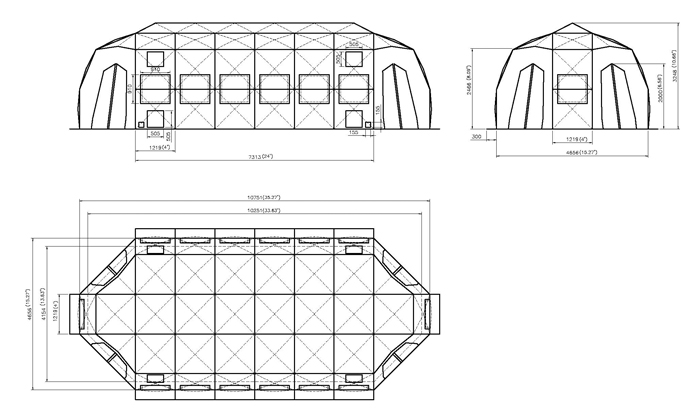

6A model, A series
